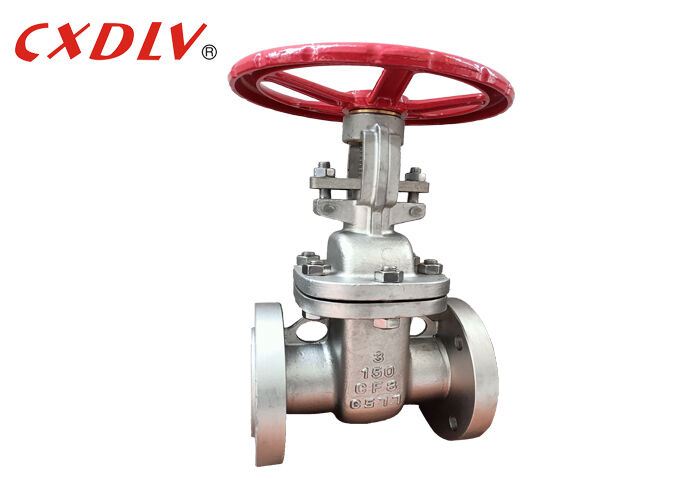

Flexible Wedge CF8 Body Gate Valve with Handle Wheel Outside Screwed and Yorker Rising Stem ANSI150
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | CXDLV |
| Certificación: | PED&ISO9001 |
| Número de modelo: | Z41W-150LBP |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Casos de madera contrachapada adecuados según diferentes válvulas de estructura |
| Tiempo de entrega: | 5 ~ 25 días de trabajo |
| Condiciones de pago: | T/T, PayPal, Western Union, D/A, L/C, D/P, Moneygram |
| Capacidad de la fuente: | 500 piezas/lon |
|
Información detallada |
|||
| Material del cuerpo: | CF8,CF8M,A216 WCB,CF3,CF3M,C95800 | Material del asiento: | Metal |
|---|---|---|---|
| Provenir: | Tronco de levantamiento | Estándar: | ANSI/JIS/GB |
| Tamaño: | el 1/2 " ~12" | Medio: | Agua, petróleo, gas |
| Conexión: | Con bridas | ||
Descripción de producto
Flexible Wedge CF8 Body Gate Valve with Handle Wheel Outside Screwed and Yorker Rising Stem ANSI150
Specifications
Applicable Standards:
- Design and Manufacture according to ASME B16.34
- Face to face according to ASME B16.10
- End Flanges according to ASME B16.5
- Inspection and test according to API 598
Size Range:
- 1/2"~12"
Pressure Rating:
- ANSI CL150/300,
Temperature Range:
- -20°C~185°C
Wedge:
- Flexible,
Construction:
- Flange
Application
The Z41W stainless steel gate valves have compact structure, reasonable design, good valve rigidity, smooth channel, small flow resistance coefficient, sealing surface is made of stainless steel and hard alloy, long service life, flexible graphite packing, reliable seal, light and flexible operation. It is suitable for piping of various systems of petroleum, chemical, hydraulic and thermal power stations with working pressure of 1.6mpa ~ 20.0mpa and working temperature of -29℃~185℃.
| SIZE | L(RF) | d | H | H1 | W | W1 |
| 1" | 127 | 25 | 240 | / | 140 | / |
| 1 1/4" | 140 | 32 | 300 | / | 180 | / |
| 1 1/2" | 165 | 38 | 395 | / | 200 | / |
| 2" | 216 | 51 | 400 | / | 200 | / |
Feature
1)Product features: meet the requirements of advanced standards at home and abroad, reliable seal, excellent performance, beautiful shape.
2)The sealing pair is advanced and reasonable, the sealing surface of gate and valve seat is surfacing welded with hard alloy of different hardness, the sealing is reliable, high hardness, wear-resisting, high temperature resistance, corrosion resistance, good abrasion resistance and long life.
3) valve stem by conditioning and surface nitriding treatment, has a good corrosion resistance, abrasion resistance and wear resistance. It can use a variety of piping flange standards and flange sealing surface form, to meet the needs of various projects and user requirements.
4)Scope of use: this product can be used in petroleum, chemical and other industries..
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K | PN16/PN40 |
| Valve Material | 1) CF8/SCS13/SS304 2) CF8M/SCS14/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Operated Type | Handwheel, Gear, Electric, Pneumatic, Bare shaft and etc. | |||
