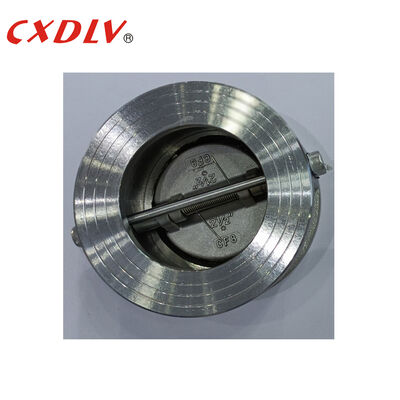

Stainless Steel 304 Wafer Type Dual Plates Check Valve Swing Type PN16 Flange End
Datos del producto:
| Lugar de origen: | ZheJiang, China |
| Nombre de la marca: | CXDLV |
| Certificación: | ISO9001:2008&PED 2014/68/EU |
| Número de modelo: | H76W-16P |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Casos de polilevado adecuados según la estructura de las válvulas diferentes |
| Tiempo de entrega: | 7-30 días |
| Condiciones de pago: | LC, T/T, Unión Occidental |
|
Información detallada |
|||
| Material del disco: | 2205/CF8M/CF8/CF3/CF3M/WCB/904L | Medio: | Agua.Gas.Petróleo |
|---|---|---|---|
| Tamaño: | DN40 ~ DN600 | Estándar: | Las condiciones de los certificados de conformidad con el presente Reglamento son las siguientes: |
| Material del cuerpo: | 2205/CF8M/CF8/CF3/CF3M/WCB/904L | MPA: | 1Las emisiones de gases de efecto invernadero de los gases de efecto invernadero de los gases de efe |
| Primavera: | Se aplicarán los siguientes requisitos: | ||
Descripción de producto

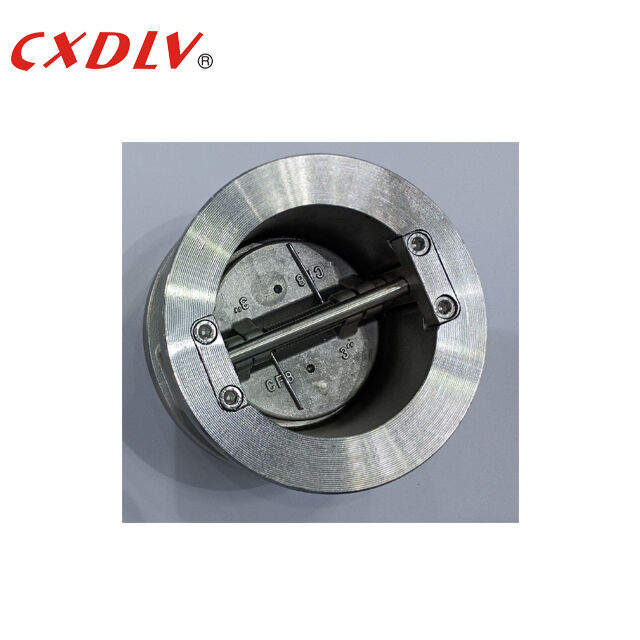

Stainless Steel 304 Wafer Type Dual Plates Check Valve Swing Type PN16 Flange End
Dimensional drawing
Specifications
Design According to AP1594. JB/T8937
Face to face according to API594. API6D. DIN3202
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to API598
Application
The Dual Plate, Wafer Check Valve employs two-spring-loaded plates hinged on a central hinge pin. The inside of the valve is composed of two semicircular springs and a plate surface, and is fixed on the valve body by a pin, and the spring is deformed to close the valve plate, and the fluid pressure causes the spring to open. The deformation is fast, which protects the pipe from water hammer damage.
Feature
1.Compact wafer-style, one-piece design;
2.Center post fully supports the internal assembly without external pins or plugs;
3.Maximum flow area reduces pressure loss;
4.The dual-plate design produces increased strength with reduced opening and closing time;
5.Torsion springs assist valve plate closure, preventing flow reversal. Consistent valve response ensures against slamming and water hammer
6.The shaft features heavy-duty, corrosion-resistant construction;
7.Shaft supports act as stops to prevent over-travel of valve plates. They are corrosion-resistant with large shaft-bearing surfaces and are easily removable for internal assembly, maintenance or change.
8.Thrust washers reduce friction and wear of valve plate hinges.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer for more than 16years.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
