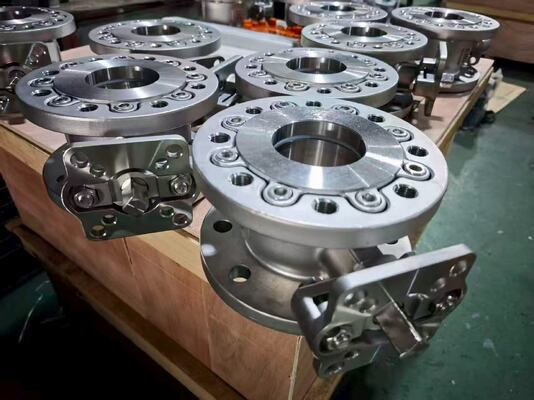

Italian thin-walled wafer ball valve with quick-change components - stainless steel ball valve
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | CXDLV |
| Certificación: | CE&ISO |
| Número de modelo: | Q71F |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Casos de madera contrachapada adecuados según diferentes válvulas de estructura |
| Tiempo de entrega: | 5 ~ 25 días de trabajo |
| Condiciones de pago: | T/T, PayPal, Western Union, D/A, L/C, D/P, Moneygram |
| Capacidad de la fuente: | 500 piezas/lon |
|
Información detallada |
|||
| Nombre del producto: | 1 pieza de válvula de bolas | Material de la válvula: | Material de la válvula |
|---|---|---|---|
| Presión: | PN16 | Operación: | Manejar |
| Conexión: | Oblea | Modelo: | Q71F |
| Resaltar: | Italian thin-walled wafer ball valve,stainless steel ball valve with quick-change,flanged ball valve with thin-walled design |
||
Descripción de producto

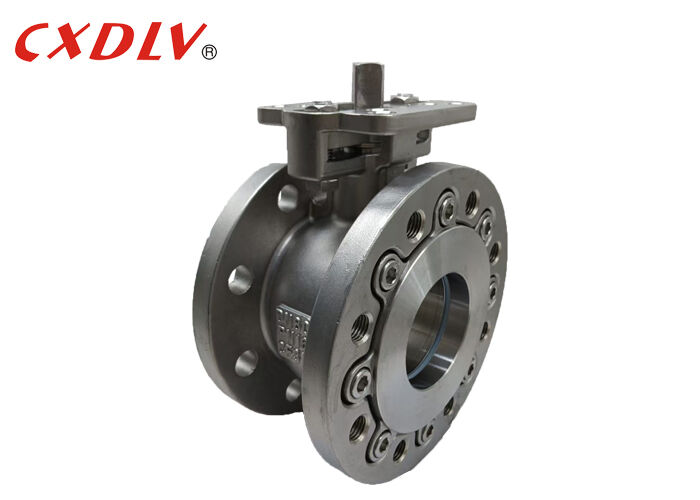

Italian thin-walled wafer ball valve with quick-change components - stainless steel ball valve
General Features
Italy Ball Valve
Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989
- Connection : JB / T79
- Fireproof Test: GB / T13927 - 1992
Size Range:
- DN15 ~ DN200
Nominal Pressure:
- Contruction 1.6 ~ 4.0 MPa
Temperature Limit:
- 20 °C ~ 350 °C
Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.
| Unit:mm | |||||
| Pressure | Size | L | D | D1 | D2 |
| PN16 | 15 | 35 | 95 | 65 | 45 |
| 20 | 38 | 105 | 75 | 55 | |
| 25 | 42 | 115 | 85 | 65 | |
| 32 | 50 | 135 | 100 | 78 | |
| 40 | 62 | 145 | 110 | 85 | |
| 50 | 72 | 160 | 125 | 100 | |
| 65 | 95 | 180 | 140 | 120 | |
| 80 | 118 | 195 | 160 | 135 | |
| 100 | 140 | 215 | 180 | 155 | |
| 125 | 195 | 245 | 210 | 185 | |
| 150 | 225 | 280 | 240 | 210 | |
| 200 | 275 | 335 | 295 | 265 | |
Application
Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.
Strength
1. Blow out proof stem design
2. Full port design
3. ISO5211 direct mounting pad
4. Flange Standard:GB
5. Various sealing materials and carbon steel options
6. Wafer ball valve structure simple, small size, light weight.
Model Selection
Wafer ball valve
| Model No | Working Pressure /Mpa |
Applicable Temperature /℃ |
Applicable Medium |
| Q71F-16P | 1.6 | PTFE≤150 PPL≤250 |
Nitrose |
| Q71F-25P | 2.5 | Nitrose | |
| Q71F-16Ti | 1.6 | Oxidizing Corrosive Medium | |
| Q71F-25Ti | 2.5 | Oxidizing Corrosive Medium |
