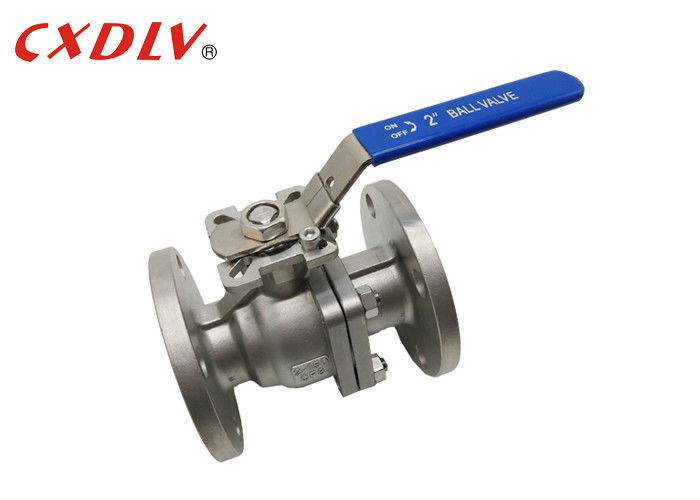

Stainless Steel Ball Valve CF8 CF8M Casting Floating Type with ASME CL150 300 Pressure Rating
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | CXDLV |
| Certificación: | CE&ISO |
| Número de modelo: | No se incluyen en el anexo. |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Casos de madera contrachapada adecuados según diferentes válvulas de estructura |
| Tiempo de entrega: | 5 ~ 25 días de trabajo |
| Condiciones de pago: | T/T, PayPal, Western Union, D/A, L/C, D/P, Moneygram |
| Capacidad de la fuente: | 500 piezas/lon |
|
Información detallada |
|||
| Material del cuerpo: | CF8, CF8M, WCB, CF3, CF3M | Material de la bola: | CF8, CF8M |
|---|---|---|---|
| Material del asiento: | PTFE | Estándar: | En el caso de las empresas de servicios de telecomunicaciones: |
| Tamaño: | 1/2 "~ 8" | Medio: | Gas acuático |
Descripción de producto
Stainless Steel Ball Valve CF8 CF8M Casting Floating Type with ASME CL150 300 Pressure Rating and 12 Inch to 8 Inch Size Range
Specifications
Casting Floating Ball Valve
Applicable Standards:
- Design and Manufacturing:GB12237-89
- Connection:JB/T79
- Fireproof Test: API607 4th 1993
- Test and Inspection:GB/T13927-1992
Size Range:
- 1/2"~8"
Pressure Rating:
- ASME CL, 150, 300
Temperature Range:
- -20°C~185°C
* Class 150LB 2 Piece Stainless Steel Flange Full Port Ball Valve
Flanged Ball Valves have a different connection type than the other ball valves we carry. Meant to be mated with another flanged connection, th e valves allow for easier cleaning and replacement.
| Pressure | Size | φD | L | φE | φB | φC | T | f | N-φh | H | H1 | W | M | P |
| Class150 | 1/2" | 13 | 108 | 89 | 60.5 | 35 | 11.5 | 1.6 | 4-16 | 48 | 79 | 135 | 9 | 9 |
| 3/4" | 19 | 117 | 98 | 70 | 43 | 11.5 | 1.6 | 4-16 | 53 | 84 | 135 | 9 | 9 | |
| 1" | 25 | 127 | 108 | 79.5 | 51 | 12 | 1.6 | 4-16 | 64 | 95 | 170 | 11 | 11 | |
| 1 1/4" | 32 | 140 | 117 | 89 | 64 | 13 | 1.6 | 4-16 | 71 | 103 | 170 | 11 | 11 | |
| 1 1/2" | 38 | 165 | 127 | 98.5 | 73 | 15 | 1.6 | 4-16 | 76 | 111 | 200 | 14 | 14 | |
| 2" | 51 | 178 | 152 | 120.5 | 92 | 16 | 1.6 | 4-19 | 85 | 120 | 200 | 14 | 14 | |
| 2 1/2" | More Specifications,Contact us freely | |||||||||||||
| 3" | ||||||||||||||
| 4" | ||||||||||||||
| 5" | ||||||||||||||
| 6" | ||||||||||||||
| 8" | ||||||||||||||
Application
The valve is mainly used in industrial circulating water supply and drainage , urban water supply and drainage , high-rise buildings and hotels of pressurized water outlet of the pump , used to cut back water and the elimination of destructive water hammer , guarantee the safe operation of the pipe network . Designed to take full account of the environmental requirements , no vibration, no noise , smooth operation , ensure that hotels, residential quiet and has a power-saving functions.
Ball Valve Strength
1. As a leading manufacturer for various kinds of Flange Industrial Valve, we have exported ball valve,
butterfly valve, gate valve,globe valve,check valve and so on throughout the world.
2. More than 12 years' experiences in this field and CE,ISO,etc. certificated qualification and extreme
standard let us keep very competitive in the current market.
3. Any order quantity is welcomed. There is ready stock for our regular & hot selling models.
And In time delivery will be ensured. Otherwise please claim compensation when it is delayed.
4. Of course,you can depend on high-quality service. We'll treat every email within 2 hours.
(Usually much faster)
5. Free samples can be sent for testing
Model Selection
2PC Full Port Floating Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
